| 產品名稱： | 套管式換熱器 |
| 產品編號： |
產品描述
1.產品簡介
套管式換熱器是公司常規產品之一，主要用于動態循環蒸發濃縮器中加熱濃縮處理介質，液-液之間逆流熱交換，效率高，無糊層，易于清洗。
本公司生產的套管式換熱器，有加熱面積可調式和不可調式兩種型式。
本公司生產的套管式換熱器，完全按照GMP的規范要求設計、生產制造。
2.型號代號：
3.型號規格
3.1.不可調套管式換熱器

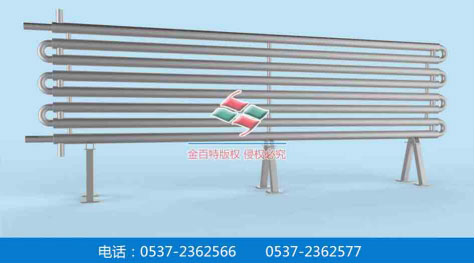

特點：換熱面積固定不可調。
型號規格一覽表
3.2.可調套管式換熱器

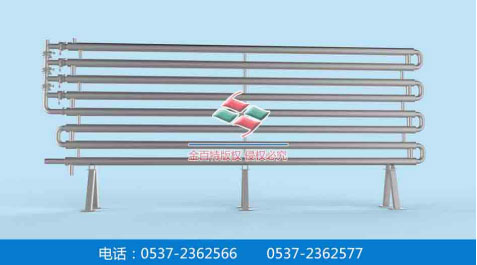

特點：換熱面積可調。
型號規格一覽表
3.3.上述任一產品，都可根據用戶要求設計定制換熱面積，以及進出口管徑等。
4.配置
4.1.標準配置
管件、管口
保溫層
4.2.定制配置
在線溫度計
5.材質
材質有sus30408、sus316等選擇，也可根據客戶的要求定做特種材質。
6.表面處理

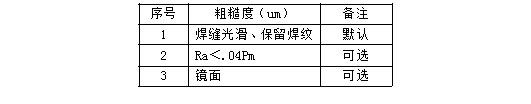

6.1.1.內表面粗糙度有下列選擇

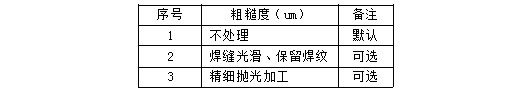

6.1.2.外表面粗糙度有下列選擇
