公司的核心產品—各種型號的連續逆流（超聲）提取機，它凝聚了超聲提取、動態逆流提取、連續自動排渣過濾、連續動態循環蒸發濃縮、殘渣殘留溶劑回收、尾氣殘留溶劑回收、特種密封等15項專利和關鍵技術，實現了全程密封條件下的連續化運行、自動化控制，在低溫或常溫條件下實現快速提取、濃縮，是一套高效、節能、安全、環保的生物技術裝備，廣泛應用于從天然植物中生產制備中成藥、天然色素、香精香料、食品添加劑、保健品、化妝品、飼料添加劑、植物農藥等產品，特別適用于大規模使用有機溶劑提取熱敏性物質。
Continuous Counter-flow Ultrasonic Extraction Complete Machinery, as core products, has agglomerated of 15 patents and know-how technologies, such as ultrasonic extraction, dynamic counter-flow extraction, continuous filtration with automatic outlet of cake, low-temperature evaporation concentration, high efficient recovery of organic solvent, specific mechanic seal etc. The machinery realizes continuous production and automatic control under seal condition, and realizing fast extraction production under low and normal temperature through the whole process. It is wildly used for extracting and producing Chinese Traditional Medicine, natural colors, flavors and fragrances, food additives, health products, cosmetics, feed additive, plant pesticides etc from various plants. It is used most suitable for extracting and producing in large scale heat sensitive extracts by organic solvent.
Continuous Counter-flow Ultrasonic Extraction Complete Machinery, as core products, has agglomerated of 15 patents and know-how technologies, such as ultrasonic extraction, dynamic counter-flow extraction, continuous filtration with automatic outlet of cake, low-temperature evaporation concentration, high efficient recovery of organic solvent, specific mechanic seal etc. The machinery realizes continuous production and automatic control under seal condition, and realizing fast extraction production under low and normal temperature through the whole process. It is wildly used for extracting and producing Chinese Traditional Medicine, natural colors, flavors and fragrances, food additives, health products, cosmetics, feed additive, plant pesticides etc from various plants. It is used most suitable for extracting and producing in large scale heat sensitive extracts by organic solvent.
產品分類
產品展示
|
產品屬性
| 產品名稱： | 熱回流提取罐 |
| 產品編號： |
產品描述
1.簡介
熱回流提取罐是公司常規產品，既可以實現有機溶劑的熱回流提取，又可實現微沸煎煮水提，廣泛應用于各種植物提取。
2.工作流程及原理
被提取的植物原料和提取溶媒投入到提取罐中，在加熱或攪拌的作用下進行提取。
提取罐配備加熱和保溫裝置，加速提取速度。
配備的冷凝器可以將過程中揮發的溶劑冷卻回收，重新進入提取罐中，形成熱回流提取。
3.應用范圍
3.1.提取溶媒
適合：水、各種易燃易爆有機溶劑、堿性液、弱酸性液（PH≥2.0）。
不適合：強酸性液。
3.2.提取溫度
溫度可調可控，具體溫度根據工藝要求任意設定，最高可至100℃。
3.3.原料及處理
適合：各種植物原料。
4.設備構成
4.1.主體部件
提取罐。
攪拌器（選配）。
自動排渣門。
自動清洗裝置。
觀察和清洗手孔
4.2.配置和控制器件
在線液位、溫度、真空等檢測儀表
蒸汽調節閥
5.型號代號
6.型號規格及圖片

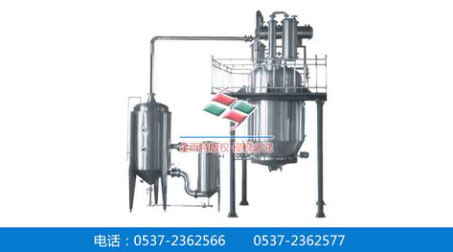

6.1.熱回流提取罐
型號規格一覽表
7.典型提取生產線工程實例：
